The True Cost of a Leaky Shaft Seal: Why 'Zero-Leak' is the New Standard in Equipment Design

Every year, thousands of tons of lubricating oil contaminate soil and waterways due to leaks from machinery, from large industrial pumps to the lawn mowers trimming suburban yards. This is not just an environmental issue; it is a direct drain on resources, a threat to operational safety, and a growing liability in an era of stringent regulations. For too long, minor drips and seeps were accepted as a normal part of mechanical operation. However, leading shaft seal manufacturers are now challenging this status quo. The industry is undergoing a fundamental shift, moving beyond mere containment to an engineering philosophy centered on achieving 'zero-leak' performance. This evolution is driven by the understanding that a seal is not just a passive component but an active system critical to efficiency, longevity, and environmental stewardship. The pursuit of this standard is not a luxury; it is a necessity for modern machinery to operate responsibly and reliably.



Table of contents：

The Engineering Behind 'Zero-Leak' Shaft Seal Performance

Translating Technical Performance into Tangible Environmental Value

A Case Study in Real-World Application

Conclusion: Sealing a Greener Mechanical Future



The Engineering Behind 'Zero-Leak' Shaft Seal Performance

Achieving a near-perfect seal in a dynamic environment—where shafts rotate at high speeds under varying temperatures and pressures—is a complex engineering feat. It requires a holistic approach that integrates advanced materials, intelligent structural design, and manufacturing precision. A seal's ability to prevent leaks while ensuring proper lubrication is the result of a delicate balance, where every component plays a crucial role. Let's deconstruct the core elements that enable this superior performance.

1. Advanced Sealing Materials: The First Line of Defense

The foundation of any high-performance seal is its material composition. The choice of polymer directly dictates its resilience against chemical degradation, temperature extremes, and physical wear. Using substandard materials is a primary cause of premature seal failure, leading to costly downtime and environmental contamination. State-of-the-art seals leverage specialized elastomers and plastics engineered for specific operational challenges.

• Nitrile Butadiene Rubber (NBR):A versatile and widely used material, NBR offers excellent resistance to mineral oils, greases, and hydraulic fluids. Its balance of durability and cost-effectiveness makes it a staple for general-purpose applications. However, its performance can be limited in high-temperature environments.
• Fluorocarbon Rubber (FKM):When equipment operates at high temperatures or is exposed to aggressive synthetic lubricants and fuels, FKM is the material of choice. It maintains its sealing integrity and elasticity at temperatures far exceeding the limits of NBR, preventing the material from hardening, cracking, and ultimately leaking. This thermal stability is critical in compact, high-output engines found in modern power equipment.
• Polytetrafluoroethylene (PTFE):Known for its incredibly low coefficient of friction, PTFE is ideal for high-speed rotating shafts where minimizing heat generation is essential. Seals incorporating PTFE lips can run with less lubrication and are highly resistant to a broad spectrum of chemicals. This characteristic not only reduces energy loss due to friction but also extends the operational life of both the seal and the shaft.

By selecting the appropriate high-performance material, engineers ensure the seal does not just temporarily block oil but endures its operating environment for thousands of hours. This longevity is the first step in minimizing waste, as it drastically reduces the frequency of replacement and the associated consumption of resources.































2. Multi-Lip Structural Design: Mastering the Oil Film

A modern shaft seal is far more than a simple ring of rubber. Its cross-sectional geometry is precisely engineered with multiple features, each serving a distinct purpose. The multi-lip design is a cornerstone of achieving zero-leak performance.

• Primary Sealing Lip:This is the main component responsible for retaining the lubricant. Its edge is designed with a specific angle and contact width to exert optimal pressure against the rotating shaft. Under dynamic conditions, it does not create a completely dry barrier. Instead, it allows a microscopic film of oil—measured in microns—to form between the lip and the shaft. This phenomenon, known as hydrodynamic lubrication, is vital. It cools the contact point, minimizes friction and wear, and is the key to a long service life. The engineering challenge is to control this film precisely, allowing just enough lubrication to prevent wear without permitting any visible leakage.
• Secondary Lip (Dust Lip):In applications like lawn and garden equipment, external contaminants are a major threat. Dust, dirt, grass clippings, and water can infiltrate the sealing area, abrading the primary lip and contaminating the lubricant. The secondary lip acts as an external barrier, a first line of defense that prevents these contaminants from reaching the critical sealing zone. This dual-protection system ensures the primary lip can perform its function in a clean, controlled environment, dramatically extending the seal's effective lifespan.

This intricate structure works as a two-stage defense system, sealing lubricant in and keeping contaminants out, ensuring reliable performance in the harshest real-world conditions.

3. The Spring-Loading System: A Guarantee of Constant Pressure

Over time, two factors work against a seal's effectiveness: wear and thermal expansion. As the sealing lip wears down from constant rotation, the contact pressure against the shaft can decrease, creating a potential leak path. Similarly, temperature fluctuations cause the shaft and housing materials to expand and contract, altering the dimensions of the sealing interface.

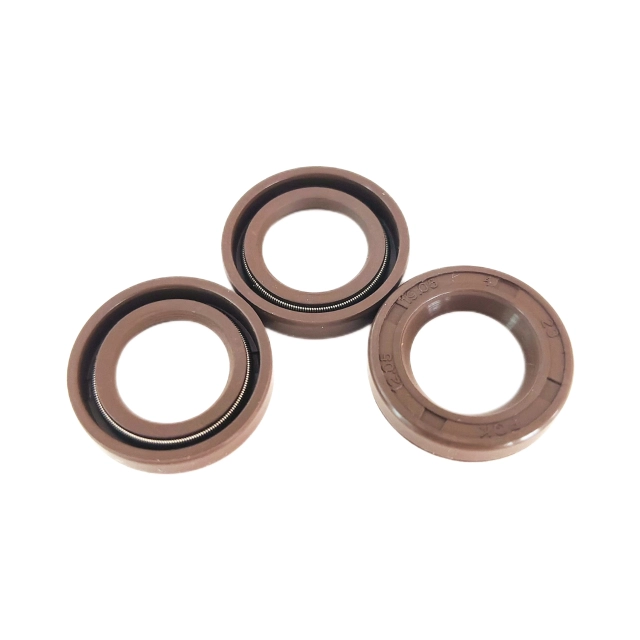

To counteract these forces, high-performance seals incorporate a garter spring. This circular metal spring is fitted into a groove molded into the seal's outer diameter, directly behind the primary lip. Its function is to provide a constant, uniform radial load on the sealing lip, pressing it firmly against the shaft. This system is self-compensating; as the lip material wears away over thousands of hours, the spring continues to exert the designed amount of force, maintaining a consistent seal. It also adapts to minor shaft imperfections or misalignments, ensuring a reliable seal even when conditions are not perfect. This constant, engineered pressure is what guarantees long-term, dynamic sealing performance.

4. Precision Manufacturing and Assembly: Eliminating Variables

Even the most advanced design is ineffective if not manufactured to exacting standards. The performance of a sealing lip is determined by tolerances measured in micrometers. The sharpness of the lip edge, the consistency of its angle, and the surface finish are all critical variables.

Leading manufacturers utilize precision molding and CNC trimming technologies to control these features with extreme accuracy. This ensures that every seal produced performs identically to the one before it. Furthermore, this precision simplifies installation. A seal with consistent dimensions and features is less susceptible to damage or improper seating during assembly, a common source of leaks often blamed on the component itself. By eliminating manufacturing defects and reducing the risk of human error during installation, precision engineering provides the final piece of the puzzle for a reliable, leak-free system.



Translating Technical Performance into Tangible Environmental Value

The technical superiority of a zero-leak shaft seal directly translates into significant, measurable benefits for both the equipment owner and the environment. This is where engineering excellence becomes a tool for sustainability.

• Reduced Soil and Water Contamination:This is the most direct benefit. Every drop of oil contained is one less drop polluting the ground. A single lawn mower leaking a few drops of oil per use may seem insignificant, but when multiplied by millions of units across the globe, it amounts to a substantial volume of hydrocarbon pollution. Zero-leak seals directly mitigate this widespread, cumulative environmental damage.
• Lower Industrial Waste Generation:A longer-lasting seal means fewer replacements over the life of a machine. This reduces the number of discarded seals—composed of rubber and metal—that end up in landfills. It also lowers the overall resource consumption associated with manufacturing, packaging, and transporting replacement parts, shrinking the equipment's lifecycle footprint.
• Decreased Use of Chemical Agents:Leaking machinery requires frequent cleaning. This often involves harsh chemical degreasers and solvents, which have their own environmental impact through manufacturing and disposal. By preventing leaks at the source, the need for such cleanup activities and the associated chemical usage is drastically reduced.
• Enhanced Energy Efficiency and Reduced Emissions:A well-sealed system operates more efficiently. Proper lubrication, maintained by a high-performance seal, reduces friction between moving parts. Less friction means less energy is wasted as heat, allowing the engine or motor to do more work with the same amount of fuel. This incremental improvement in efficiency, when applied across millions of machines, contributes to a measurable reduction in fuel consumption and, consequently, lower carbon emissions.





























A Case Study in Real-World Application

A prominent manufacturer of commercial landscaping equipment faced recurring warranty claims related to engine oil leaks in their line of zero-turn mowers. These machines operate for hours daily in high-temperature, high-dust environments. After switching to a new shaft seal featuring a multi-lip FKM design and a precision-tensioned garter spring, the company tracked performance over a full season. The results were compelling: annual lubricant top-off requirements across their fleet decreased by an average of 20%, and maintenance calls related to oil seepage fell by over 30%. One test unit, operating in the demanding conditions of central Florida, logged over 3,000 hours of operation with no recorded leakage, far exceeding the lifespan of the previous component.



Conclusion: Sealing a Greener Mechanical Future

The humble shaft seal is an unsung hero in the world of mechanical engineering. Its performance, or lack thereof, has cascading effects on a machine's reliability, safety, and environmental impact. The shift towards a zero-leak standard is more than a marketing term; it is an engineering imperative. It represents a commitment to building machinery that not only performs its function effectively but does so with minimal impact on the world around it.

This dedication to superior performance—achieved through meticulous material science, intelligent design, and uncompromising manufacturing quality—is what separates a mere component provider from a true engineering partner. When sourcing parts, it is crucial to look for a shaft seal supplier whose focus is on this level of integrated design. Companies like PQK exemplify this philosophy. Their approach is built on a deep understanding of how precision-molded NBR and FKM compounds, combined with multi-lip and spring-loaded architectures, create a system that delivers on the promise of zero-leak. Choosing such a component is not just an equipment upgrade; it is a conscious decision to invest in a more reliable, efficient, and sustainable mechanical world.
